Bimetal Sheet - Cu-Al Clad Electrical Materials

Bi Metal Strips — Strong Bonded Bimetal Sheet

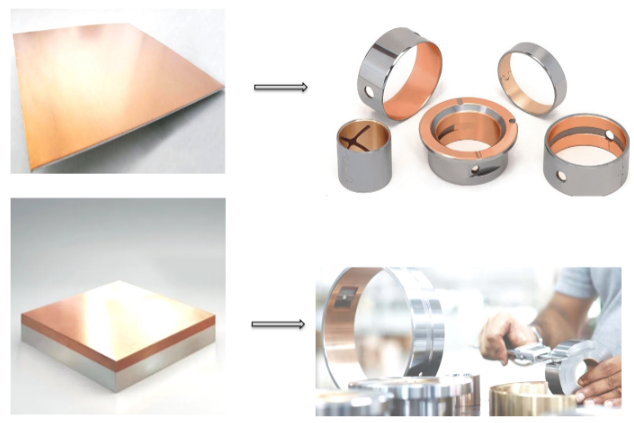

Perfect for Bimetal Bushings, Washers, Bearings, and Electrical Applications

🔹 Product Overview — Bimetal Sheet

Our Bimetal Sheets are produced by metallurgically bonding two distinct metals — typically aluminum and steel or copper — through advanced rolling or explosive bonding techniques. These sheets offer a unique combination of light weight, corrosion resistance, and mechanical strength, making them ideal for high-performance industrial applications.

💡 Key Features — Bimetal Sheet

• Explosion Bonded Bimetal Sheet
• Aluminum + Steel or Copper Composite
• High Bonding Strength – Excellent interlayer adhesion
• Good Conductivity & Corrosion Resistance
• Reduces Weight without Sacrificing Performance
• Machinable, Stampable, and Formable
• Custom Thickness Ratios & Sizes Available

📐 Product Specifications — Bimetal Sheet

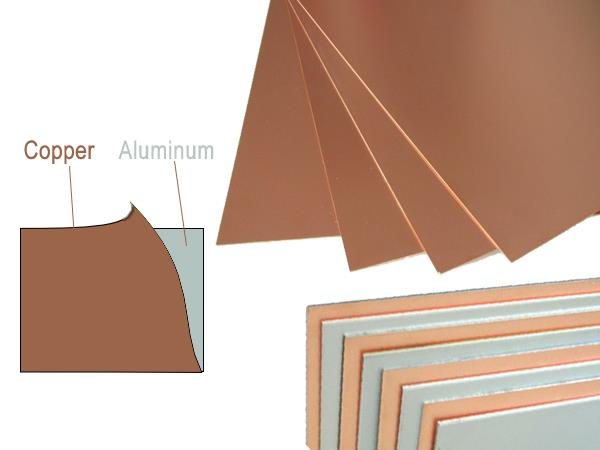

• Cu-Al bimetal, Clad sheet

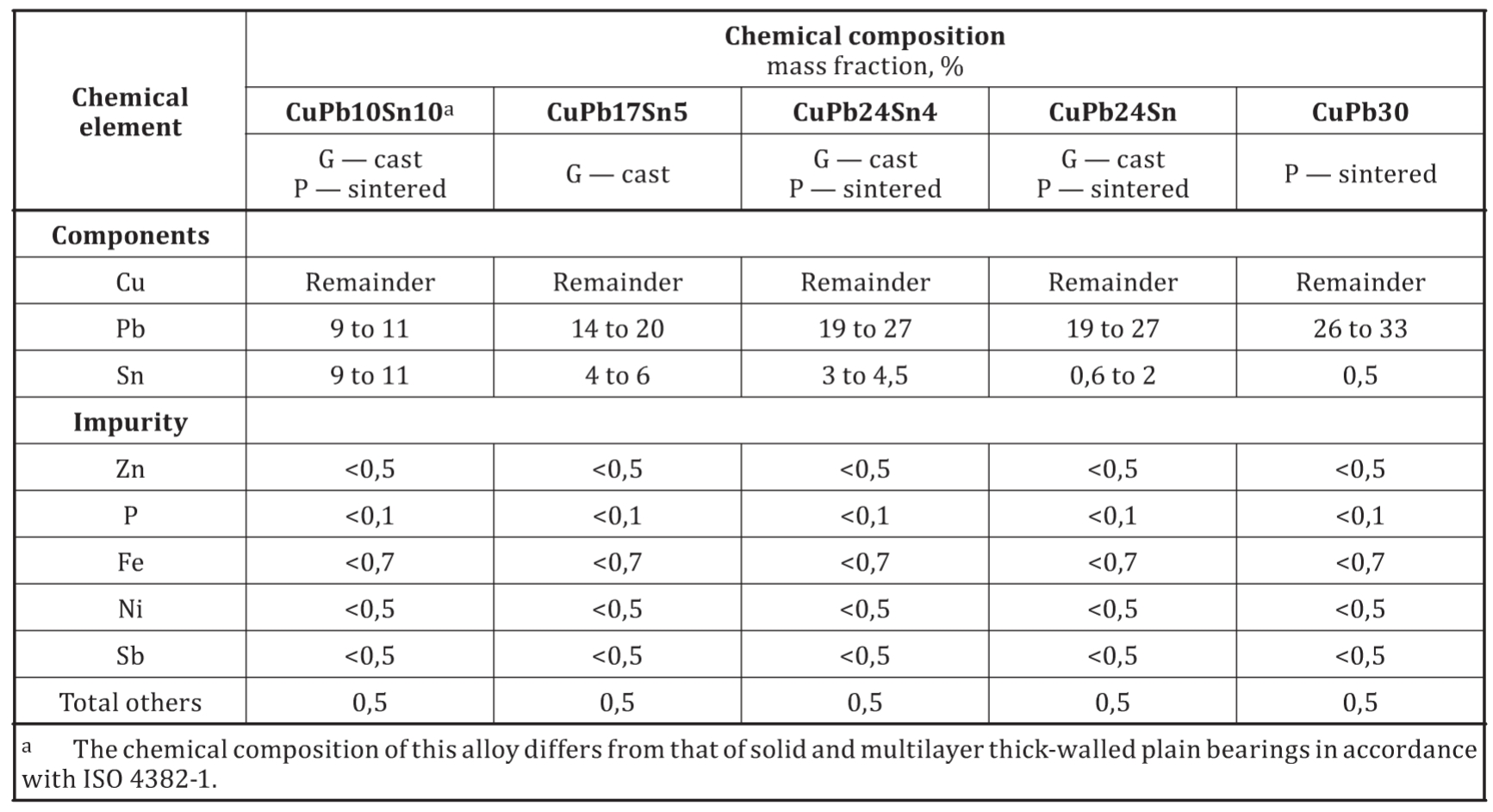

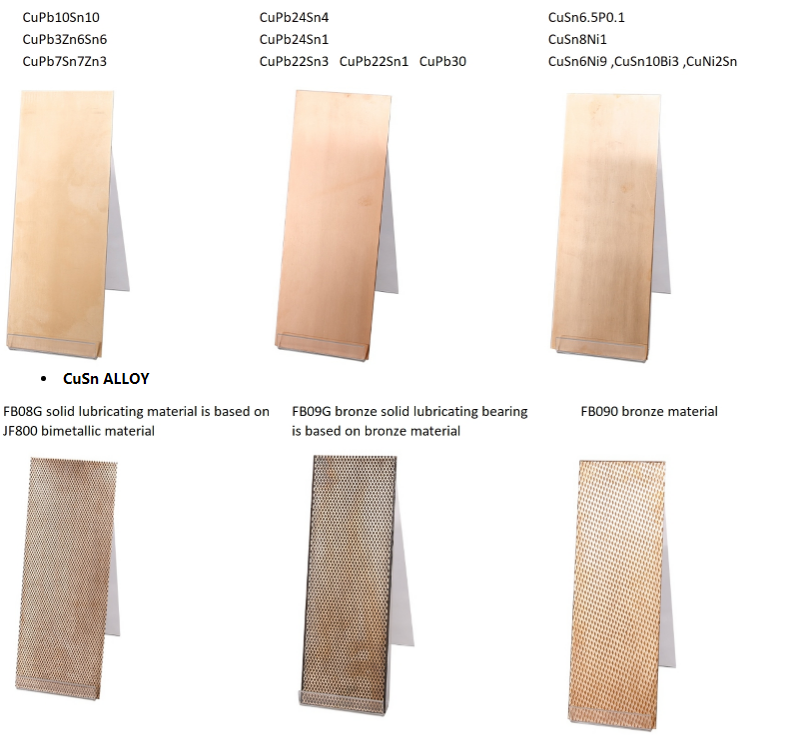

     Copper Alloy Powders Available:

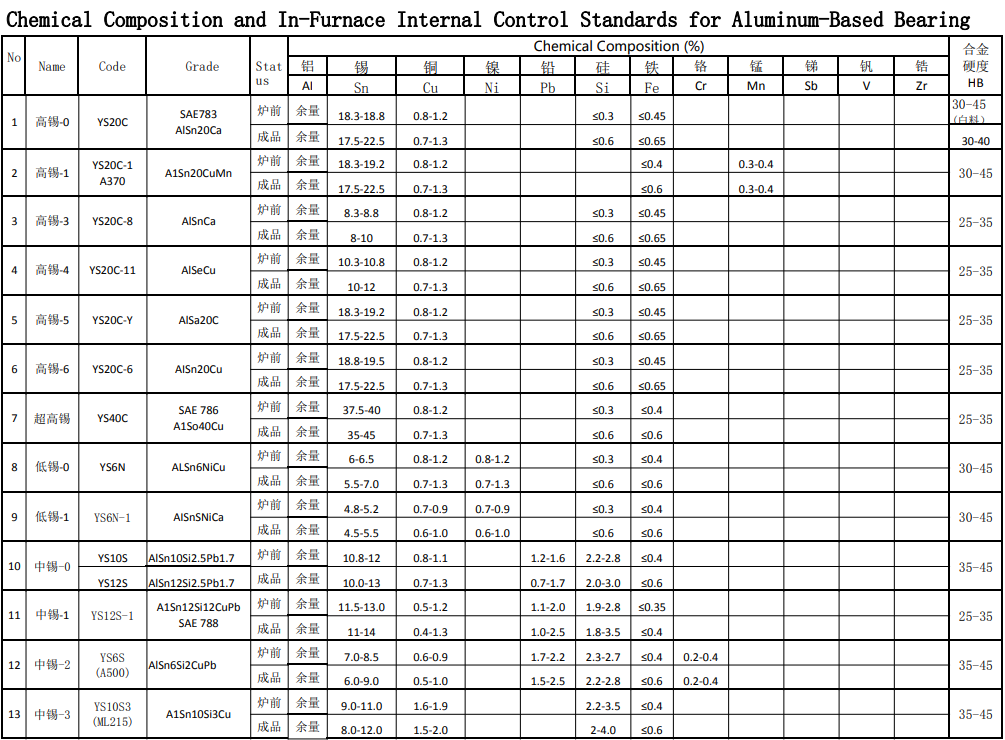

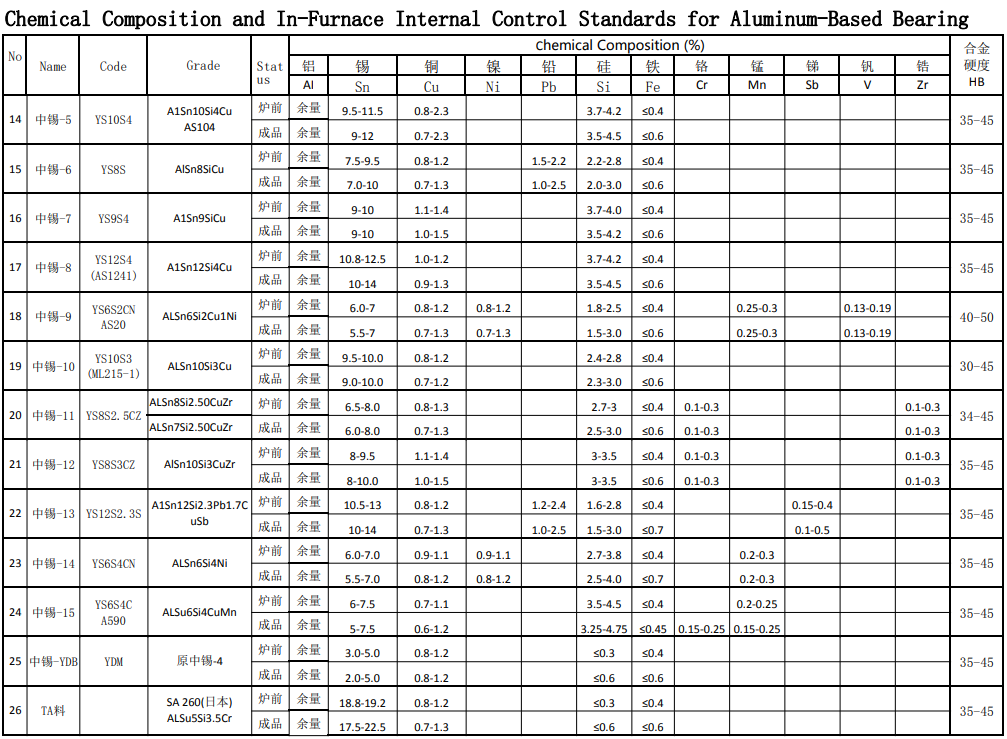

• Al-Sn Bimetal Sheet

• Material: AlSn20Cu / AlSn10Si4Cu AS104 / AlSn8SiCu / AlSn9SiCu / AlSn12Si4Cu / AlSn6Si2Cu1Ni /  AlSn10Si3Cu / AlSn8Si2.50CuZr

                   AlSn7Si2.50CuZr  / AlSn10Si3Cu2Zr  / AlSn12Si2.3Pb1.7C uSb / AlSn6Si4Ni / AlSn6Si4CuMn  / SA 260 (Japan)  AlSu55i3.5Cr

  Bimetallic Sheets:

  ·  Thickness: 0.7 mm – 30 mm                     Width: ≤ 230 mm                     Length: < 2000 mm

  Bimetallic Coils:

  ·  Thickness: 1.5 mm – 4.0 mm                     Width: 80 mm – 180 mm

•
•

• Cu-Al bimetal, Clad sheet

•

•   —— Al-Sn Bimetal Sheet

•
•

📦 Standard packaging ensures protection during sea and land freight.

🛠️ Main Applications — Bimetal Sheet

• Switchgear, Busbars, Terminal connectors
• Conductive aluminum-copper bimetal sheet for power distribution and switchgear systems
• Explosion bonded for durability
